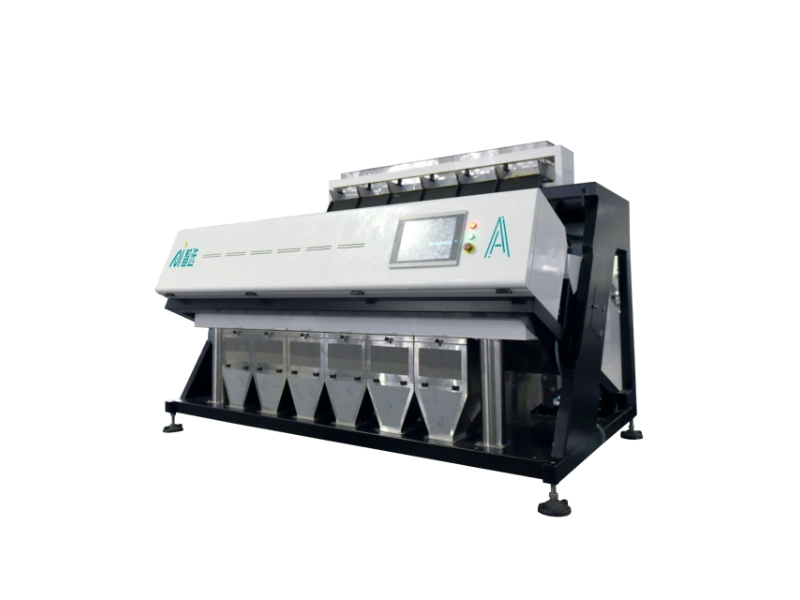

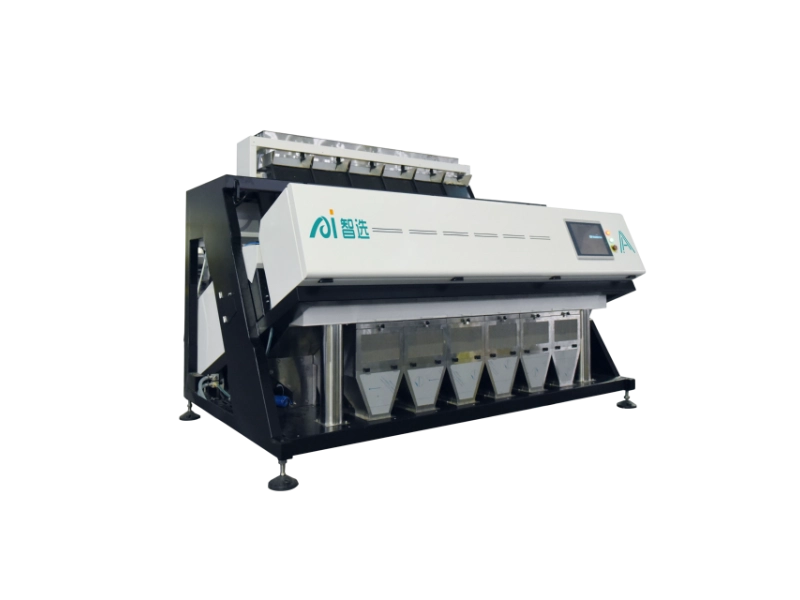

Recycled Polymer Sorter Machine

6SXG-378CZ II
6SXG-504CZ II

Features

Polymer sorting: PET, PP, PE, PVC, PS, ABS, PA, PC, PLA, PMMA, POM, and more

Cooperating with tens of thousands of customers, intelligent interconnection, and worry-free after-sales.
Nearly a thousand process quality inspections, consistent quality, and excellence.
Hundreds of algorithms have been developed to identify colors and shapes.
Twenty years of deep cultivation in color sorting and doubled production.

Inquire Now Datasheet Download

Description
Product advantages
FAQ

Description

Specifications and Parameters

Model	Throughput(t/h)	Power (kw)	Air pressure (mpa)	Air consumption (m³/min)	Size(mm)	Weight(kg)
6SXG-378CZ II	1.8-3.0	2.6	0.5-0.8	2.0-3.5	288816672015	1975
6SXG-504CZ II	2.5-4.0	4.0	0.5-0.8	2.5-4.5	351616672015	2450

Note:

1. The product configuration is constantly updated, and the product configuration parameters may be different in different periods. The actual machine shall prevail.

2. The performance shown in this album is produced by testing, and may vary in actual production due to different site environments.

Functions

1. Advanced Multi-dimensional NIR Camera, Recognizes and sorts a wide range of polymers

2. Full color Matrix CCD cameras, Color grouping distinguishes colors, both transparent and opaque

3. 0.4mm Center distance nozzle with High frequency ejector, Capable of sorting flakes around 2mm

4. Low thermal illumination system with a water cooling system

Product advantages

Infrared quality selection technology

Unique InGaAs infrared quality selection technology, integrating shape selection and color selection algorithms, intelligent matching sorting schemes, to meet different sorting needs.
Holographic infrared camera

Equipped with a visible lens and infrared lens, achieving 0.6mm ultra clear resolution, clearer viewing, more precise recognition, and controlling colors and materials.
Efficient circulating water cooling and heat dissipation

Full coverage high-efficiency circulating water cooling device, fast heat dissipation, low noise, and low energy consumption.
Intelligent variable frequency solenoid valve

Adaptive injection system, no exhaust, no air leakage, fast response, low power consumption and long life.
Center positioning removal technology

Algorithm fitting defect material digital model, marking material center point. Realize smaller gas volume and more accurate center removal.
Intelligent Ash Cleaning 3.0 System

Inductive real-time cleaning+automatic recognition of spatial grayscale, reasonable and cleaner cleaning.

FAQ

Q
What kind of after-sales service do you provide?

A
We offer a 7/24-hour service call. Solve basic questions by WhatsApp, Email, WeChat, or Telephone. The engineer will go to the buyer's factory to install, test machines, and train the buyer's staff on how to operate and maintain machines. Operating manuals will be sent with the machine or by email.
Q
How long about the warranty period?

A
One year. And we supply lifelong after-sales services for our customers.
Q
How to perform sorting tests with your machines?

A
Sample sending for testing is welcome. Or you can tell us what materials you want to sort, preferably with photos, and tell us how you want them sorted.
Q
Can we visit the factory?

A
Sure, our factory is located in Hefei, Anhui Province. Please feel free to contact us to let us know your visiting time.
Q
How to ensure the machine quality?

A
Before each machine is shipped, our engineers will inspect and debug the machine to ensure the best results for customers.
Q
Can you customize the sorting solution for us?

A
Yes, you need to tell us the materials you want to sort and the output, etc. Our technicians will analyze your specific situation and give you a final answer.
