    PIDS Belt Type Dry Coal Sorting Machine

    PIDS 10S-A01
    PIDS 10M-A01
    PIDS 10L-A01

    Features

    PIDS photoelectric intelligent dry coal selection machine is a dry coal selection equipment based on advanced imaging and artificial intelligence technology. Using X-ray imaging system to obtain material characteristics, automatically analyze and identify coal and gangue, control high-pressure air to spray on the target, and achieve fully automatic raw coal sorting. It has advantages such as high sorting accuracy, significant reduction in electricity and labor costs, easy maintenance of equipment, and strong adaptability to coal types.

    • Cooperating with tens of thousands of customers, intelligent interconnection, and worry-free after-sales.
    • Nearly a thousand process quality inspections, consistent quality, and excellence.
    • Hundreds of algorithms have been developed to identify colors and shapes.
    • Twenty years of deep cultivation in color sorting and doubled production.

    Share:

Description

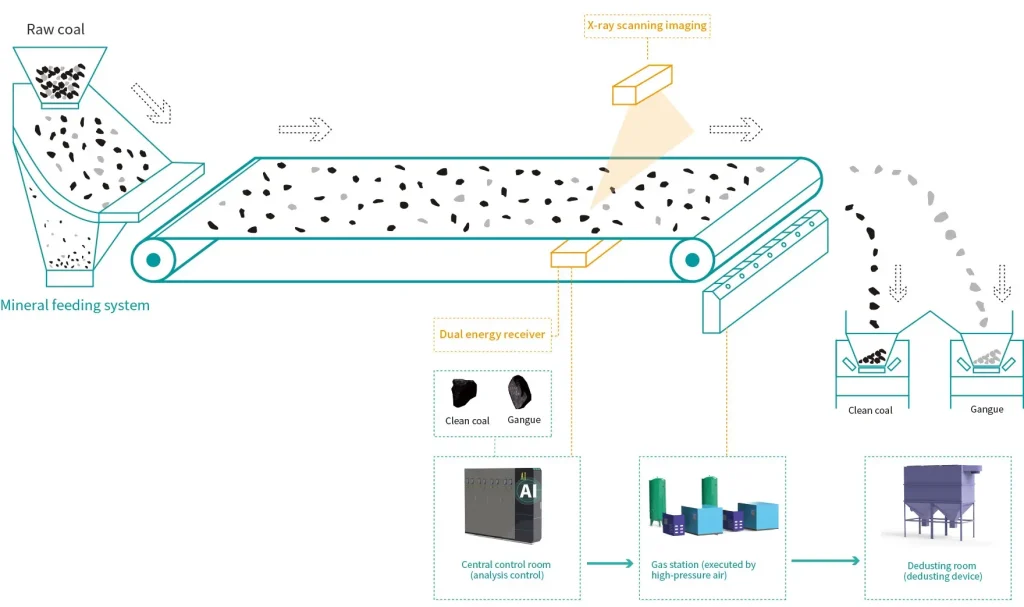

WORKING PRINCIPLE

Using a dual energy X-ray/visible light full spectrum multi spectral scanning imaging system to collect images of materials on the conveyor belt, using deep learning image recognition technology to analyze and determine the type of materials, accurately controlling high-pressure air to spray gangue and impurities, achieving precise, efficient, and energy-saving fully automatic coal sorting.

SPECIFICATIONS AND PARAMETERS

Particle Size: 25-100mm
PIDS Dry Coal Sorting Machine

Model PIDS 10S-A01 PIDS 12S-A01 PIDS 14S-A01 PIDS 16S-A01 PIDS 18S-A01 PIDS 20S-A01 PIDS 24S-A01
Belt Width(mm) 1000 1200 1400 1600 1800 2000 2400
Processing Capacity(t/h) 55 65 80 90 100 115 140
System Power(Kw) 80 100 110 130 150 180 220
Average Power(Kw) 60 75 83 98 113 135 165

Note: Due to different ores in different regions, the technical parameters are for reference only, and they shall be subject to the actual design.

Particle Size: 50-300mm
PIDS Dry Coal Sorting Machine
Model PIDS 10M-A01 PIDS 12M-A01 PIDS 14M-A01 PIDS 16M-A01 PIDS 18M-A01 PIDS 20M-A01 PIDS 24M-A01
Belt Width(mm) 1000 1200 1400 1600 1800 2000 2400
Processing Capacity(t/h) 80 110 130 150 180 200 240
System Power(Kw) 80 100 110 130 150 180 220
Average Power(Kw) 60 75 83 98 113 135 165

Note: Due to different ores in different regions, the technical parameters are for reference only, and they shall be subject to the actual design.

Particle Size: 150-600mm
PIDS Dry Coal Sorting Machine

Model

PIDS 16L-A01 PIDS 18L-A01 PIDS 20L-A01 PIDS 24L-A01
Belt Width(mm) 1600 1800 2000 2400
Processing Capacity(t/h) 200 240 280 320
System Power(Kw) 180 220 260 300
Average Power(Kw) 135 165 195 225

Note: Due to different ores in different regions, the technical parameters are for reference only, and they shall be subject to the actual design.

FAQ

  • Q

    What kind of after-sales service do you provide?

    A
    We offer a 7/24-hour service call. Solve basic questions by WhatsApp, Email, WeChat, or Telephone. The engineer will go to the buyer's factory to install, test machines, and train the buyer's staff on how to operate and maintain machines. Operating manuals will be sent with the machine or by email.
  • Q

    How long about the warranty period?

    A
    One year. And we supply lifelong after-sales services for our customers.
  • Q

    How to perform sorting tests with your machines?

    A
    Sample sending for testing is welcome. Or you can tell us what materials you want to sort, preferably with photos, and tell us how you want them sorted.
  • Q

    Can we visit the factory?

    A
    Sure, our factory is located in Hefei, Anhui Province. Please feel free to contact us to let us know your visiting time.
  • Q

    How to ensure the machine quality?

    A
    Before each machine is shipped, our engineers will inspect and debug the machine to ensure the best results for customers.
  • Q

    Can you customize the sorting solution for us?

    A
    Yes, you need to tell us the materials you want to sort and the output, etc. Our technicians will analyze your specific situation and give you a final answer.
