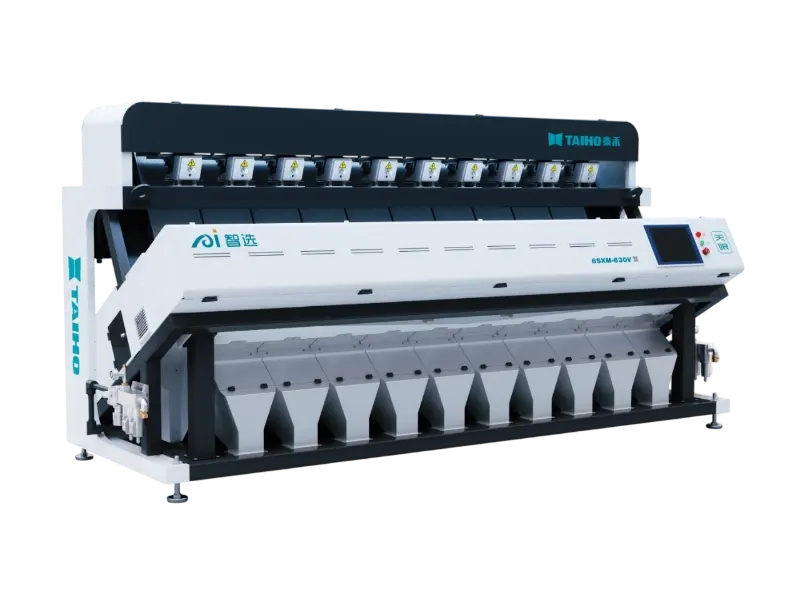

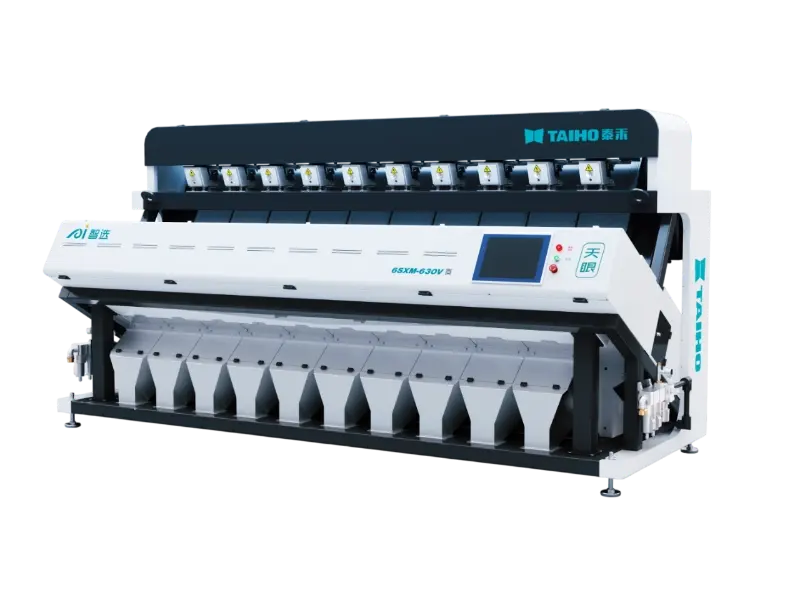

Observation Series Grain Color Sorter Machine

6SXM-252V
6SXM-315V
6SXM-378V
6SXM-441V
6SXM-504V
6SXM-630V
6SXM-819V

Features

Won the Industrial Design Gold Award; 350 million pixel ultra clear image; Solar like spectroscopy technology; Multi spectral confocal technology; Can remove glass, desiccants, transparent plastic particles, etc.

Cooperating with tens of thousands of customers, intelligent interconnection, and worry-free after-sales.
Nearly a thousand process quality inspections, consistent quality, and excellence.
Hundreds of algorithms have been developed to identify colors and shapes.
Twenty years of deep cultivation in color sorting and doubled production.

Inquire Now Datasheet Download

Description
Product advantages
FAQ

Description

Specifications and Parameters

Model	Throughput(t/h)	Carry overratio	Power(kw)	Supply voltage(v)	Air pressure(mpa)	Air consumption(m ³ /min)	Size(mm)	Weight(kg)
6SXM-252V	4.0-8.0	>120:1	2.4	220V/50Hz	0.5-0.8	1.5-2.5	183514601960	1020
6SXM-315V	5.0-10.0	>120:1	3	220V/50Hz	0.5-0.8	2.0-3.0	214914601960	1187
6SXM-378V	6.0-12.0	>120:1	3.6	220V/50Hz	0.5-0.8	2.5-3.5	246314601960	1332
6SXM-441V	7.0-14.0	>120:1	4.1	220V/50Hz	0.5-0.8	3.0-4.0	277714601960	1525
6SXM-504V	8.0-16.0	>120:1	4.7	220V/50Hz	0.5-0.8	3.5-4.5	309114601960	1686
6SXM-630V	10.0-20.0	>120:1	5.8	220V/50Hz	0.5-0.8	4.5-6.5	371914601960	2047
6SXM-819V	13.00-26.0	>120:1	7.8	220V/50Hz	0.5-0.8	5.0-7.5	512514501980	2615

Note:

1. The above color selection performance is based on rice with impurities less than 2% as an example.

2. If there are any updates to the product, the actual machine shall prevail.

Functions

1. Reduce grain waste to safeguard food security.

2. Sort good products for fair pricing based on quality.

3. Enable remote connectivity for easy maintenance and management.

Product advantages

Intelligent holographic flash camera, high-resolution and clearer

Adapted to intelligent image sensors and various complex optical environments, it can achieve 35K high-speed imaging+350 million pixel ultra clear resolution.
Intelligent variable frequency solenoid valve, saving gas and electricity

Adaptive injection system, no exhaust gas, no air leakage, fast response speed, low power consumption, and long service life.
Al Smart Core Processing Platform, Faster and Smarter

Equipped with SOC intelligent chips and integrating AI deep learning algorithms, a sorting platform with higher integration, faster computation, and stronger processing capabilities is constructed.
Adaptive feeding system for larger and more uniform production

Adapted to intelligent material level sensors, non-contact real-time monitoring of feeding situation, balanced channel feeding amount through PID closed-loop control, achieving uniform feeding.
AI color dual selection algorithm, suitable for all scenes

Supports the recognition of morphological features of materials in all directions, including length, fragmentation, thinness, and roundness, and can be used simultaneously with color selection function.
Center positioning removal algorithm, efficient and more accurate

The algorithm fits the digital model of defective materials, marks the center point of the material, and achieves small gas volume and more accurate center removal.
Color restoration algorithm, clear and more realistic

Integrating multidimensional data such as light, quality, color, and shape, achieving quantum level recognition of rice raw materials and restoring their true colors.
Full link remote interconnection, convenient and considerate

Customized 4G/5G gateway for industrial Internet of Things, equipped with routing, 4G/5G, WIFI, and wired internet functions, allowing users to check the device's working status anytime, anywhere.

FAQ

Q
What kind of after-sales service do you provide?

A
We offer a 7/24-hour service call. Solve basic questions by WhatsApp, Email, WeChat, or Telephone. The engineer will go to the buyer's factory to install, test machines, and train the buyer's staff on how to operate and maintain machines. Operating manuals will be sent with the machine or by email.
Q
How long about the warranty period?

A
One year. And we supply lifelong after-sales services for our customers.
Q
How to perform sorting tests with your machines?

A
Sample sending for testing is welcome. Or you can tell us what materials you want to sort, preferably with photos, and tell us how you want them sorted.
Q
Can we visit the factory?

A
Sure, our factory is located in Hefei, Anhui Province. Please feel free to contact us to let us know your visiting time.
Q
How to ensure the machine quality?

A
Before each machine is shipped, our engineers will inspect and debug the machine to ensure the best results for customers.
Q
Can you customize the sorting solution for us?

A
Yes, you need to tell us the materials you want to sort and the output, etc. Our technicians will analyze your specific situation and give you a final answer.
