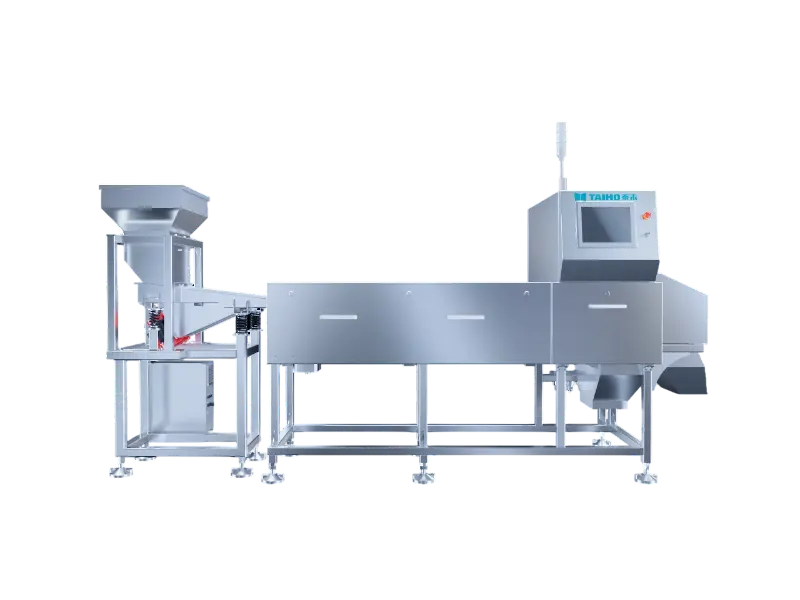

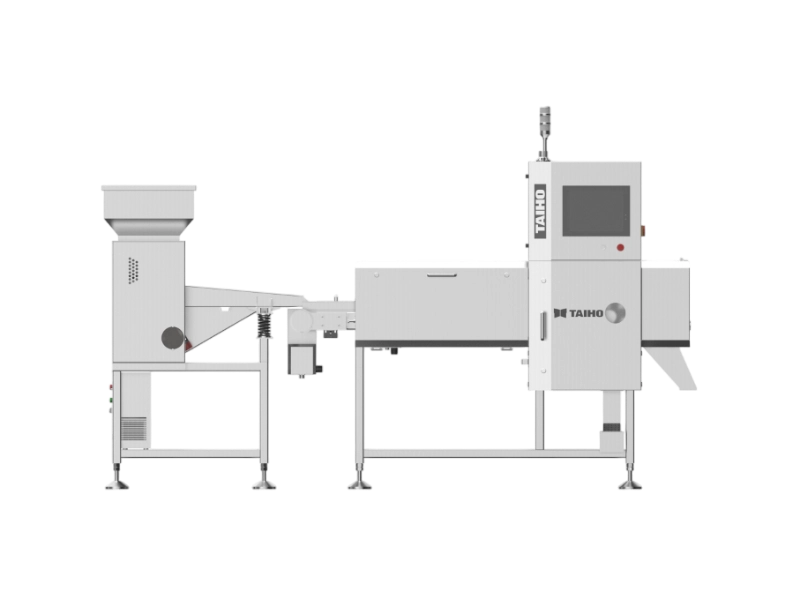

Bulk Materials Integrated X-ray Detector Sorting Machine

Features

AI deep learning; Foreign object and defect detection; High yield; Suitable for various types of grain, nuts, tea and other loose materials.

Cooperating with tens of thousands of customers, intelligent interconnection, and worry-free after-sales.
Nearly a thousand process quality inspections, consistent quality, and excellence.
Hundreds of algorithms have been developed to identify colors and shapes.
Twenty years of deep cultivation in color sorting and doubled production.

Inquire Now Datasheet Download

Specifications and Parameters

Product model	THX-S600B	THX-S400B
X-ray source	Maximum voltage and current:80kV/8mA;Service life＞20000 hours	Maximum voltage and current:80kV/5mA; Service life＞20000 hours
Safety	X-ray leakage is much less than lμSv/h	X-ray leakage is much less than lμSv/h
Detection sensitivity	Stainless steel;φ0.3mm;Stainless steel wire;φ0.2*2mm	Stainless steel:φ0.3mm;Stainless steel wire;φ0.2*2mm
Detection size	一	一
Conveyor speed	1.5-2.0m/s	1.5m/s
Conveyor material and width	Food grade PU, width 650mm	Food grade PU, width 440mm
Display screern	15-inch Ruinao intelligent control screen	15-inch Ruinao intelligent control screen
Support data interface	USB&LAN	USB&LAN
Power input	AC110/220V	AC110/220V
*Machine dimension(LDH)*	4088mm1472mm2325mm	2788mm1270mm2366mm
Total power	2.9kW	2.0kW
Total welght	1000kg	750kg
Elimination system	108 channel blowing removal	72 channel blowing removal
Protection grade	Transmisslon part IP66,other IP54	Transmisslon part IP66,other IP54
Working environment	Temperature:-10℃~40℃;Humidity:30%~90%,no frost formation	Temperature:-10℃~40℃;Humidity:30%~90%,no frost formation
Body material	SUS304	SUS304
Air pressure	0.5～0.8Mpa	0.5～0.8Mpa
Air compressor	≥4.8kW	≥3.6kW

Remark:

1. The above machine specifications are standard specifications; other sizes and requirements can be customized.

2. The detectable effective width depends on the actual situation.

3. A product update is not to be noticed. Please contact the supplier for details.

4. The optimum detection accuracy is no-load state, and the real detection accuracy is subject to the measured material.

1. Reduce grain waste to safeguard food security.

2. Sort good products for fair pricing based on quality.

3. Enable remote connectivity for easy maintenance and management.

TAI+X-ray imaging system

Equipped with a high specification small focus X-ray source, with high power and stable emission; Matched with ultra clear GOS detector, 360 ° multi-dimensional imaging.
TAI+Smart Chip Processing System

Applied AI edge processing architecture, equipped with NPU embedded neural network processor, matched with DLA deep learning acceleration engine, with 40TOPS (up to 100TOPS) super computing power, fast and intelligent speed.
TAI+Intelligent Algorithm System

Integrating neural network algorithms and deep learning algorithms, autonomously collecting, learning, and recognizing the comprehensive features of various dimensions of materials, achieving massive information processing with high accuracy and strong adaptability.
TAI+Internet of Things System

Utilize the TAI+intelligent manufacturing interconnection platform, apply 4G/5G+Huawei Cloud, to achieve intelligent IoT and automatic interaction; Apply WeChat mini programs for remote operation and online services.
TAI+Diversity Exclusion System

By using diversified removal devices and mechanical configurations such as flippers, swing rods, and push rods, precise removal of packaging materials containing impurities can be achieved.
TAI+Black Shield Protection System

Integrated enclosed design, resistant to high and low temperature environments, dustproof, waterproof, and radiation resistant (radiation leakage<1μSv/h); Food grade contact materials, fully process safe care, and guaranteed health quality.

Q
What kind of after-sales service do you provide?

A
We offer a 7/24-hour service call. Solve basic questions by WhatsApp, Email, WeChat, or Telephone. The engineer will go to the buyer's factory to install, test machines, and train the buyer's staff on how to operate and maintain machines. Operating manuals will be sent with the machine or by email.
Q
How long about the warranty period?

A
One year. And we supply lifelong after-sales services for our customers.
Q
How to perform sorting tests with your machines?

A
Sample sending for testing is welcome. Or you can tell us what materials you want to sort, preferably with photos, and tell us how you want them sorted.
Q
Can we visit the factory?

A
Sure, our factory is located in Hefei, Anhui Province. Please feel free to contact us to let us know your visiting time.
Q
How to ensure the machine quality?

A
Before each machine is shipped, our engineers will inspect and debug the machine to ensure the best results for customers.
Q
Can you customize the sorting solution for us?

A
Yes, you need to tell us the materials you want to sort and the output, etc. Our technicians will analyze your specific situation and give you a final answer.
