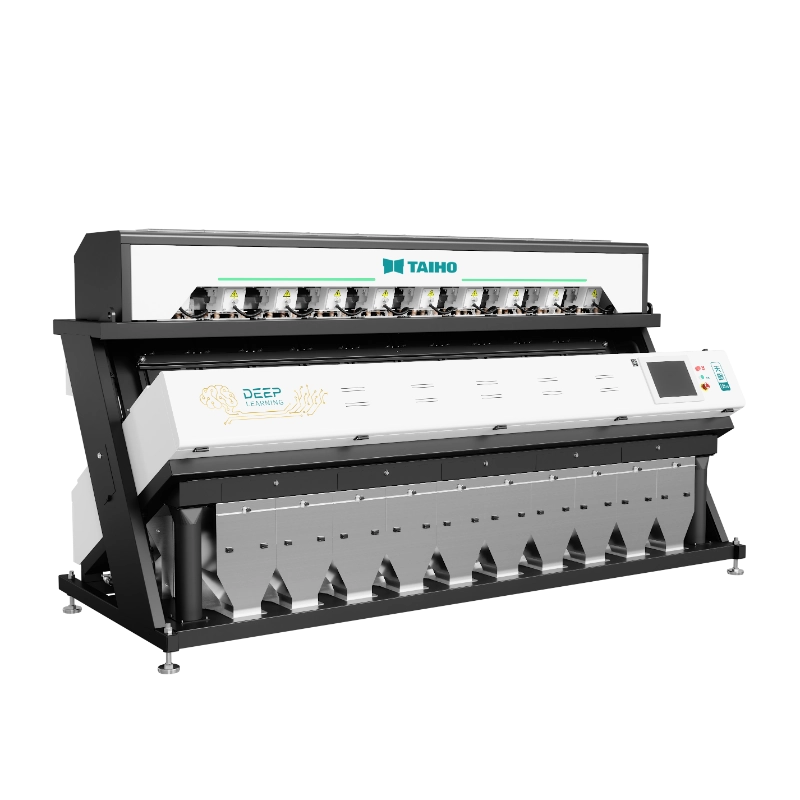

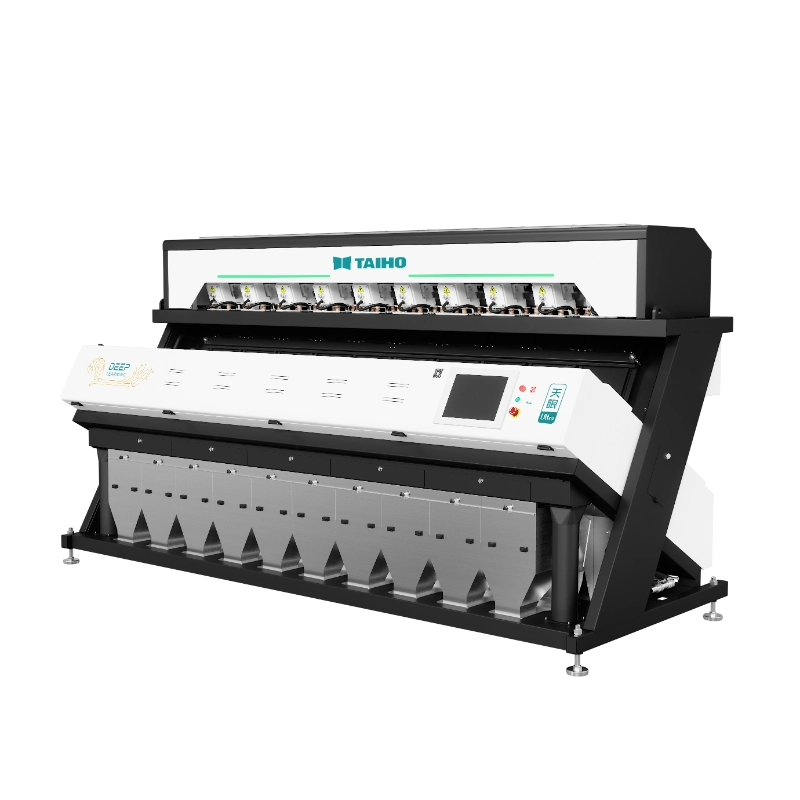

AI Tech Grain Sorting Observation Ultra Series Color Sorter Machine

6SXZ-270V+AI
6SXZ-450V+AI
6SXZ-630V+AI
6SXZ-720V+AI
6SXZ-900V+AI
6SXZ-1080V+AI
6SXZ-1440V+AI

Features

350 million pixel ultra clear image + solar spectral technology; 360 degree multi-dimensional imaging; AI self-cooperative sensing technology; Multi spectral confocal technology.

Cooperating with tens of thousands of customers, intelligent interconnection, and worry-free after-sales.
Nearly a thousand process quality inspections, consistent quality, and excellence.
Hundreds of algorithms have been developed to identify colors and shapes.
Twenty years of deep cultivation in color sorting and doubled production.

Inquire Now Datasheet Download

Description
Product advantages
FAQ

Description

Specifications and Parameters

Model	Single-Channel throughput (t/h)	Power (Kw)	Electricity Voltage (V)	Air Pressure (MPa)	Air consumption (m³/min)	Size (mm)	Weight (Kg)
6SXZ-270V+AI	≤3.5	1.8	AC220V±5% 50/60Hz	0.5-0.8	＜2.5	173615101945	1020
6SXZ-450V+AI		2.7	AC220V±5% 50/60Hz	0.5-0.8	＜4.0	235115101945	1335
6SXZ-630V+AI		3.9	AC220V±5% 50/60Hz	0.5-0.8	＜5.5	285415101945	1715
6SXZ-720V+AI		4.3	AC220V±5% 50/60Hz	0.5-0.8	＜6.0	316815101945	1910
6SXZ-900V+AI		5.1	AC220V±5% 50/60Hz	0.5-0.8	＜7.0	379615101945	2240
6SXZ-1080V+AI		6.0	AC220V±5% 50/60Hz	0.5-0.8	＜8.0	443415101945	2655
6SXZ-1080V+AI (back to back)		6.9	AC220V±5% 50/60Hz	0.5-0.8	＜8.0	282229011940	2837
6SXZ-1440V+AI (back to back)		8.6	AC220V±5% 50/60Hz	0.5-0.8	＜10.0	345029011940	3636
6SXZ-900V+UV	≤3.0	5.1	AC220V±5% 50/60Hz	0.5-0.8	6.0-9.0	379615101945	2342
6SXZ-1080V+UV	≤3.0	6.3	AC220V±5% 50/60Hz	0.5-0.8	7.2-10.8	443415101945	2775

Note:

All color-sorting performance data are based on maize containing ≤5% impurities.
Specifications are subject to change without notice due to continuous product upgrades. Actual machine configuration prevails.
Performance claims in this brochure derive from controlled laboratory tests; on-site results may vary with operating conditions.

Functions

1. Reduce grain waste to safeguard food security.

2. Sort good products for fair pricing based on quality.

3. Enable remote connectivity for easy maintenance and management.

Product advantages

Intelligent holographic flash camera, high-resolution and clearer

Free adaptation of intelligent holographic flash camera, flexible switching of visible or infrared optical lenses, can achieve 35K high-speed imaging+350 million pixel ultra clear resolution.
AI intelligent chip processing platform, faster and more intelligent

Equipped with SOC intelligent chips and integrating AI deep learning algorithms, a sorting platform with higher integration, faster computation, and stronger processing capabilities is constructed.
Adaptive feeding system for larger and more uniform production

Adapted to intelligent material level sensors, non-contact real-time monitoring of feeding situation, balanced channel feeding amount through PID closed-loop control, achieving uniform feeding.
Intelligent ash cleaning 5.0 system, with high suction power for cleaner cleaning

The full coverage gradient dust removal system can be equipped with an optional suction and dust removal device, which has a more reasonable structure, stronger suction force, and cleaner dust removal.
LED optical sensing system, energy-saving and more durable

Adopting low-temperature spotlight LED light source, intelligent dimming, 16 million color mixing options, energy-saving and more durable.
Color restoration algorithm, clear and more realistic

Integrating multidimensional data such as light, quality, color, and shape, achieving quantum level recognition of raw materials and restoring their true colors.
Intelligent variable frequency solenoid valve, saving gas and electricity

Adaptive injection system, no exhaust gas, no air leakage, fast response speed, low power consumption, and long service life.
Center positioning removal algorithm, efficient and more accurate

The algorithm fits the digital model of defective materials, marks the center point of the material, and achieves small gas volume and more accurate center removal.

FAQ

Q
What kind of after-sales service do you provide?

A
We offer a 7/24-hour service call. Solve basic questions by WhatsApp, Email, WeChat, or Telephone. The engineer will go to the buyer's factory to install, test machines, and train the buyer's staff on how to operate and maintain machines. Operating manuals will be sent with the machine or by email.
Q
How long about the warranty period?

A
One year. And we supply lifelong after-sales services for our customers.
Q
How to perform sorting tests with your machines?

A
Sample sending for testing is welcome. Or you can tell us what materials you want to sort, preferably with photos, and tell us how you want them sorted.
Q
Can we visit the factory?

A
Sure, our factory is located in Hefei, Anhui Province. Please feel free to contact us to let us know your visiting time.
Q
How to ensure the machine quality?

A
Before each machine is shipped, our engineers will inspect and debug the machine to ensure the best results for customers.
Q
Can you customize the sorting solution for us?

A
Yes, you need to tell us the materials you want to sort and the output, etc. Our technicians will analyze your specific situation and give you a final answer.
