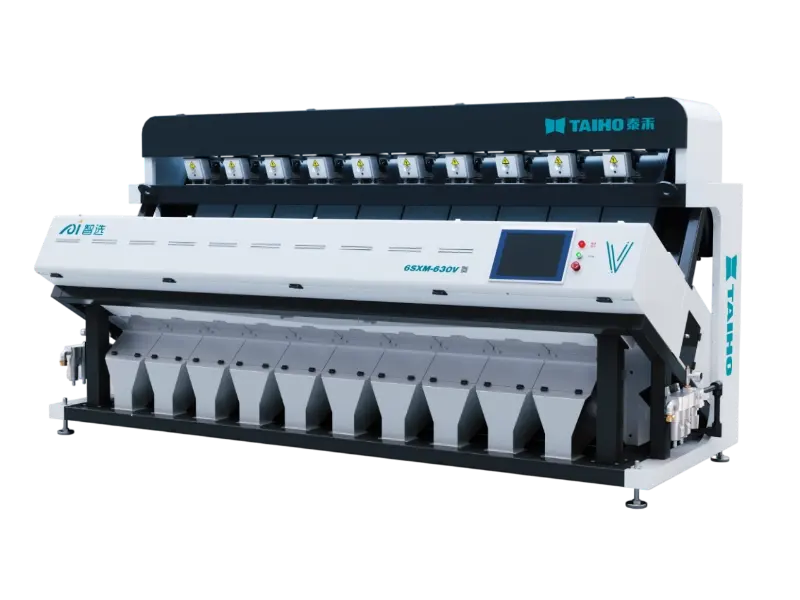

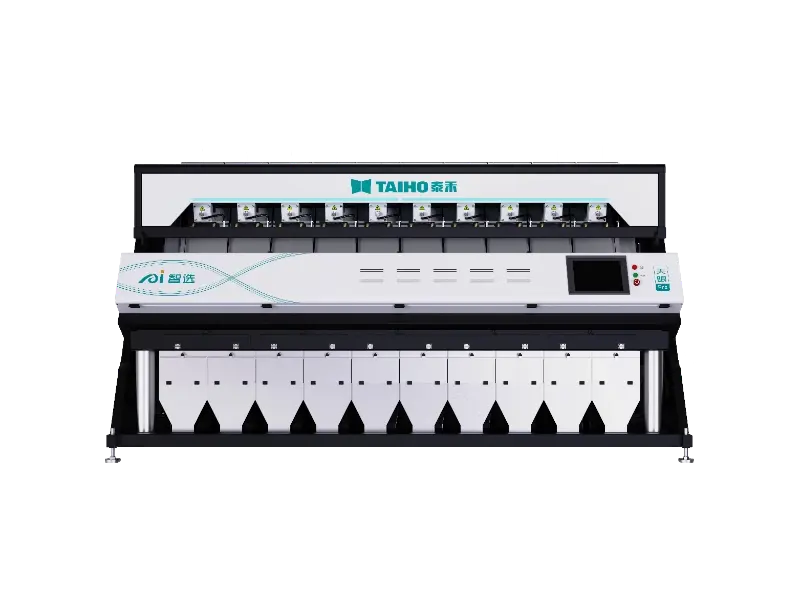

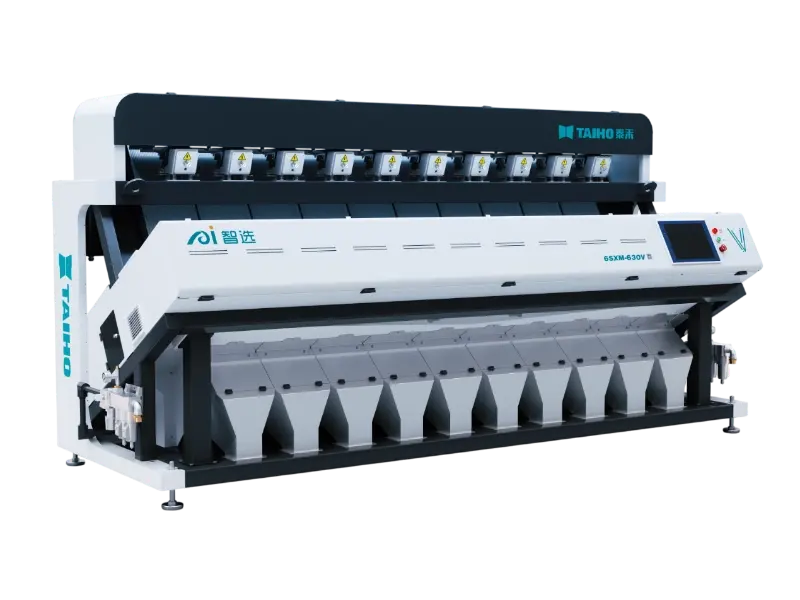

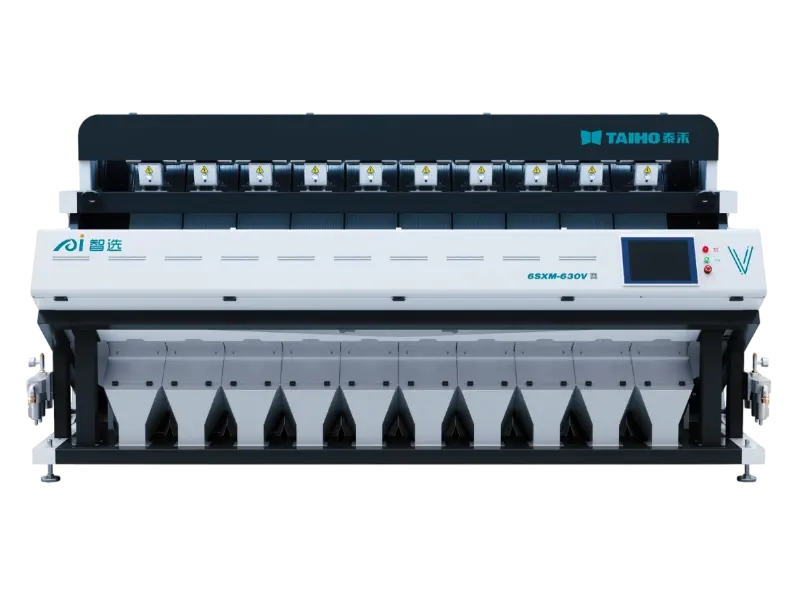

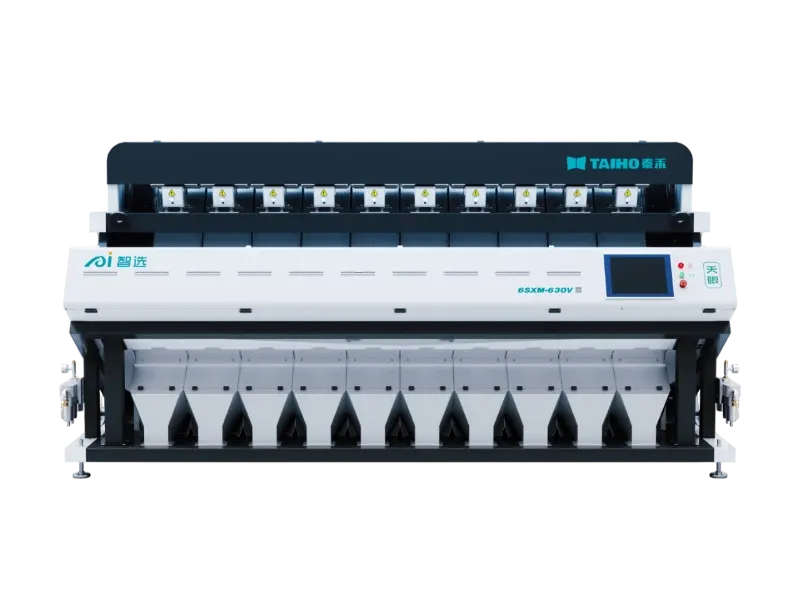

AI Sorting V Series Grain Color Sorter Machine

6SXM-504V
6SXM-630V
6SXM-819V

Features

Double the yield by 20%; CMOS image sensor; Exclusive four view imaging technology; Multi spectral confocal technology; Can remove glass, desiccants, transparent plastic particles, etc.

Cooperating with tens of thousands of customers, intelligent interconnection, and worry-free after-sales.
Nearly a thousand process quality inspections, consistent quality, and excellence.
Hundreds of algorithms have been developed to identify colors and shapes.
Twenty years of deep cultivation in color sorting and doubled production.

Inquire Now Datasheet Download

Description
Product advantages
FAQ

Description

Specifications and Parameters

Model	Throughput(t/h)	Carry over ratio	Power(kw)	Supply voltage(v)	Air pressure(mpa)	Air consumption(m ³/min)	Size(mm)	Weight(kg)
6SXM-504V	9.0-18.0	>140:1	4.7	AC220V±10%	0.5-0.8	3.5-4.5	309114601960	1686
6SXM-630V	11.0-22.0	>140:1	5.8	AC220V±10%	0.5-0.8	4.5-6.5	371914601960	2047
6SXM-819V	13.0-26.0	>140:1	7.8	AC220V±10%	0.5-0.8	5.0-7.5	512514501980	2615

Note:

1. The above colour sorting performance is based on the rice with less than 2% impurity as an example.

2. If there are any updates to the product, the actual machine shall prevail.

Functions

1. Reduce grain waste to safeguard food security.

2. Sort good products for fair pricing based on quality.

3. Enable remote connectivity for easy maintenance and management.

Product advantages

CMOS sensor integration is higher

CMOS sensors have higher integration, reduce data transmission resistance, enhance computing power, and achieve real-time processing of massive data.
Excellent image color restoration ability

Excellent image color restoration ability, achieving extremely high frame rates and almost lossless image quality.
Upgrade of parallel processing capability of intelligent camera system

Equipped with an intelligent camera system, the parallel processing capability has been upgraded by four times, and the data throughput has been upgraded by more than two times.
Time sharing light source system

A time-sharing light source system is used to reduce the impact of stray light sources. Four images are collected in a single shot under different lighting conditions, with matching algorithms set according to different images.
Exclusive multi view 4 imaging algorithm

Exclusive multi view 4 imaging algorithm, fitting rice data model, realistically reproducing extremely light yellow, white belly, and white core.
Standard multispectral confocal function

Standard multi spectral confocal function is equipped to achieve precise identification and removal of glass, desiccant, and transparent plastic particles.
Color restoration algorithm

The color restoration algorithm integrates multi-dimensional data such as light, quality, color, and shape to restore the true color of materials.
TAl+Intelligent Manufacturing Internet Platform

By using TAl+intelligent manufacturing interconnection platform, enterprises, customers, and devices can be interconnected, with real-time collection of machine data and real-time monitoring of status.

FAQ

Q
What kind of after-sales service do you provide?

A
We offer a 7/24-hour service call. Solve basic questions by WhatsApp, Email, WeChat, or Telephone. The engineer will go to the buyer's factory to install, test machines, and train the buyer's staff on how to operate and maintain machines. Operating manuals will be sent with the machine or by email.
Q
How long about the warranty period?

A
One year. And we supply lifelong after-sales services for our customers.
Q
How to perform sorting tests with your machines?

A
Sample sending for testing is welcome. Or you can tell us what materials you want to sort, preferably with photos, and tell us how you want them sorted.
Q
Can we visit the factory?

A
Sure, our factory is located in Hefei, Anhui Province. Please feel free to contact us to let us know your visiting time.
Q
How to ensure the machine quality?

A
Before each machine is shipped, our engineers will inspect and debug the machine to ensure the best results for customers.
Q
Can you customize the sorting solution for us?

A
Yes, you need to tell us the materials you want to sort and the output, etc. Our technicians will analyze your specific situation and give you a final answer.
